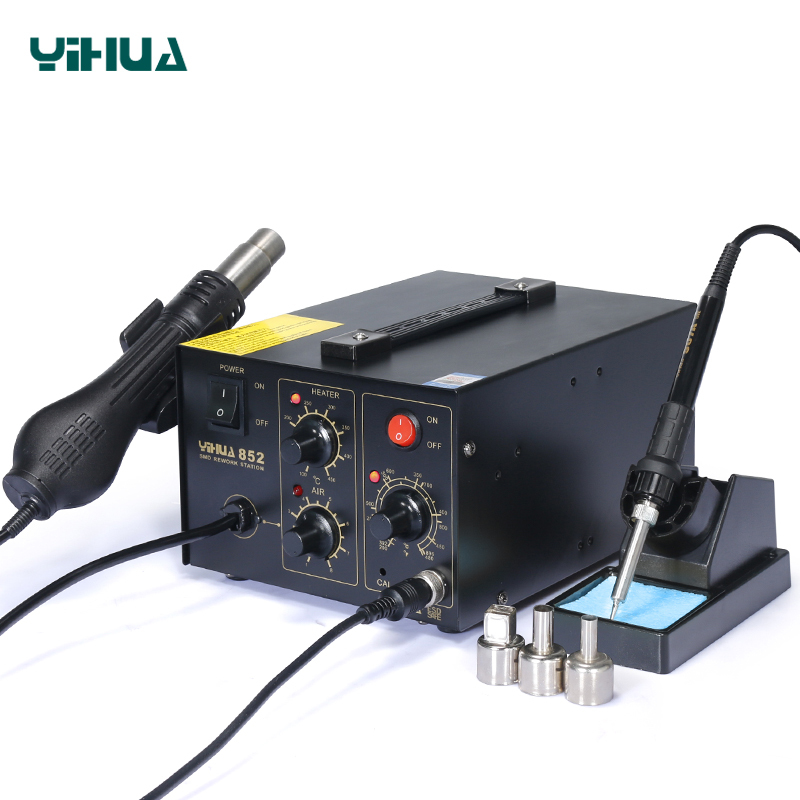

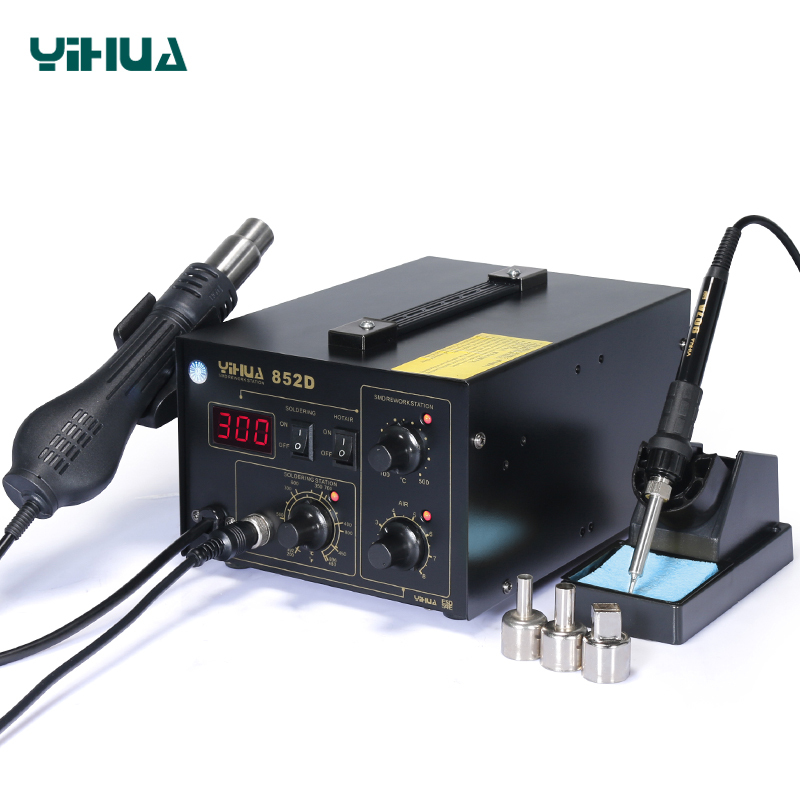

D Type: YIHUA-852/852D/852D series 2 in 1 hot air rework station with soldering iron has a LED display, with which the operator can well control the temperature of the hot air gun. During the application, the temperature fluctuation is below 15℃.

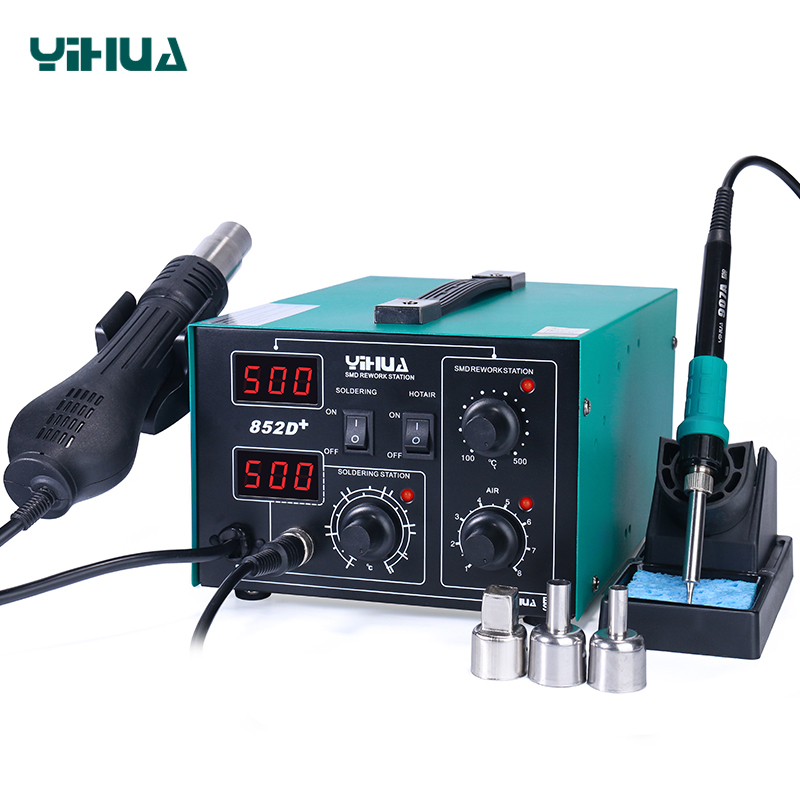

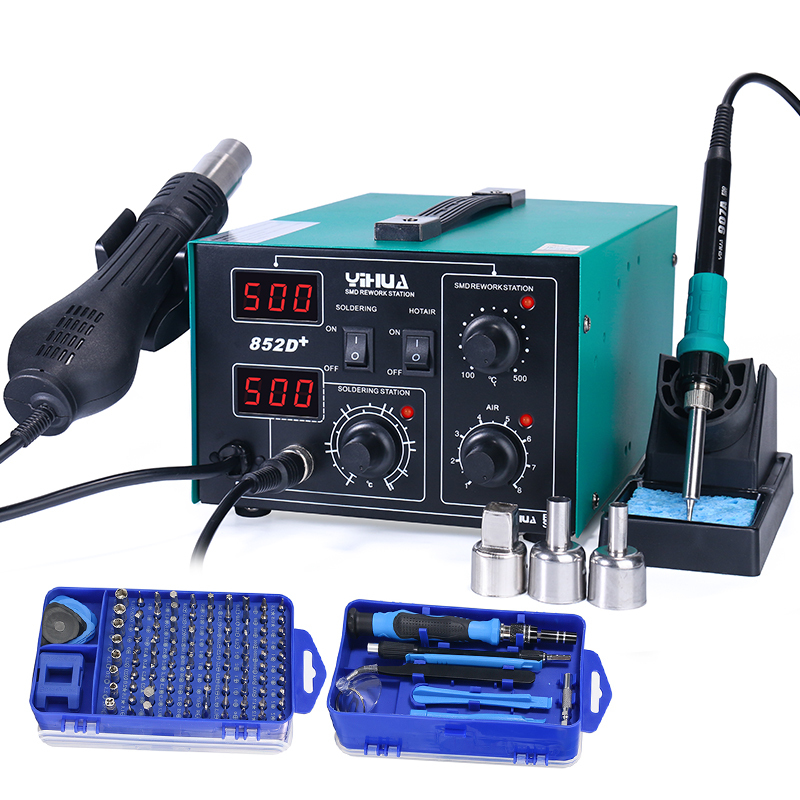

D+ Type: Compared to D type, it is added with a LED display for precisely control the temperature of soldering iron. Similarly, the temperature fluctuation is no more than 15℃.
D+SE Type: Unlike the above two types, this type applies the high-power heaters. Therefore, it is suitable for the large welding spot.
Parameter| Machine | ||
| Rated Voltage | AC 220V±10% 50Hz | |
| Machine Power | 700W±10% (Maximum) | |
| Working Environment | 0~40℃< Relative Humidity< 80% | |
| Storage Environment | －20~80℃ Relative Humidity< 80% | |
| Machine Size | 25.5*18.8*12.5cm | |
| Weight | 4.5KG | |
| Parts | ||
| Item | Hot air gun | Soldering iron |
| Working Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output Power | 650W | 50W |
| Temperature Range | 100~480℃ | 200℃~480℃ |
| Airflow Mode | Brushless fan | --- |
| Airflow | 120L/min (max) | --- |
| Temperature Stability | ±15℃ (static) | ±10℃ (static) |
| Display | One LED (red/green) | One LED (red/green) |
| Heater | Heating core ceramics heater | Common metal heater |
| Tips to Ground Impedance | --- | < 2Ω |
| Tips Voltage to Ground | --- | < 2mV |
