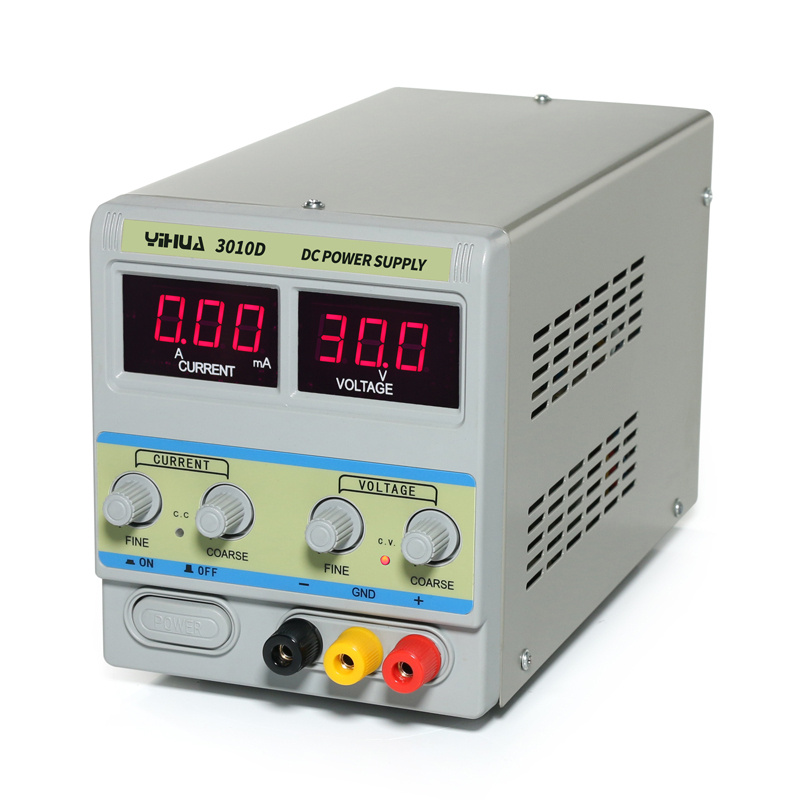

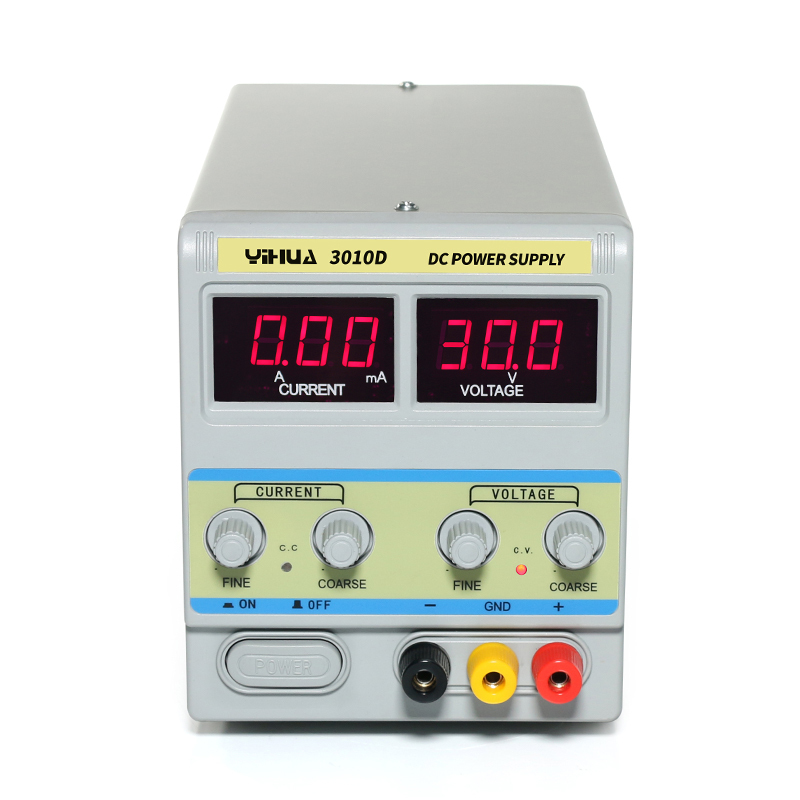

This model has compact design with all metal construction.
1.This unit now features a Dual LED display with highly accurate LED digital readout.
2.Maximum output is 30V at 10A.
3. High stabilized output voltage.
4. Short circuit protection.
5.Over loading and current protection.
PRODUCT SPECIFICATIONS
Compact Design
All Metal Construction
Dual LED Display
High Stabilized Output Voltage
Short Circuit Protection
Over Loading and Current Protection
Operating Conditions:
Supply power: AC 220-240V, 50Hz/60Hz.
Working Temperature: -10°C ~ 40 °C
Relative Humidity: ‹ 90%
Storage Conditions: -10°C ~ 40 °C
Relative Humidity: ‹ 80%
Stable Voltage
The output voltage is between 0 and nominal value continuously adjustable
Voltage Stability: ≤0.01% +2mV
Load Stability: ≤ 0.01% +2mV
Recovery Time: ≤100µS
Ripple Noise: ≤1 MVRMS(RMS)
Temperature Coefficient: ≤ 200PPM/°C
Stable Current
The output current is between 0 and nominal value continuously adjustable
Power Stability: 0.1% + 3mA
Load Stability: 0.2% + 3mA
Ripple Noise : ≤2mArms(RMS)
