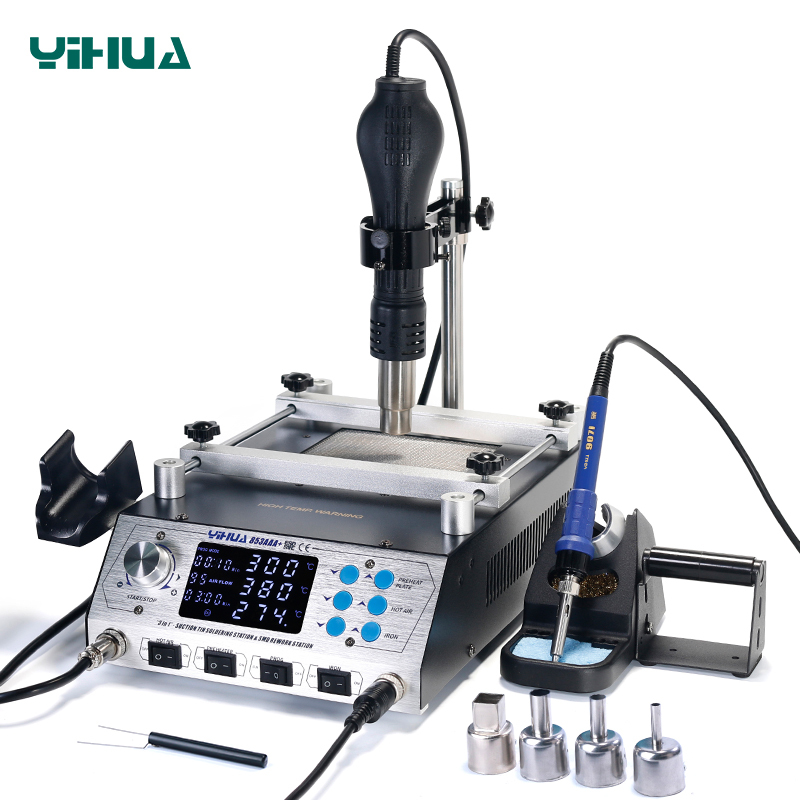

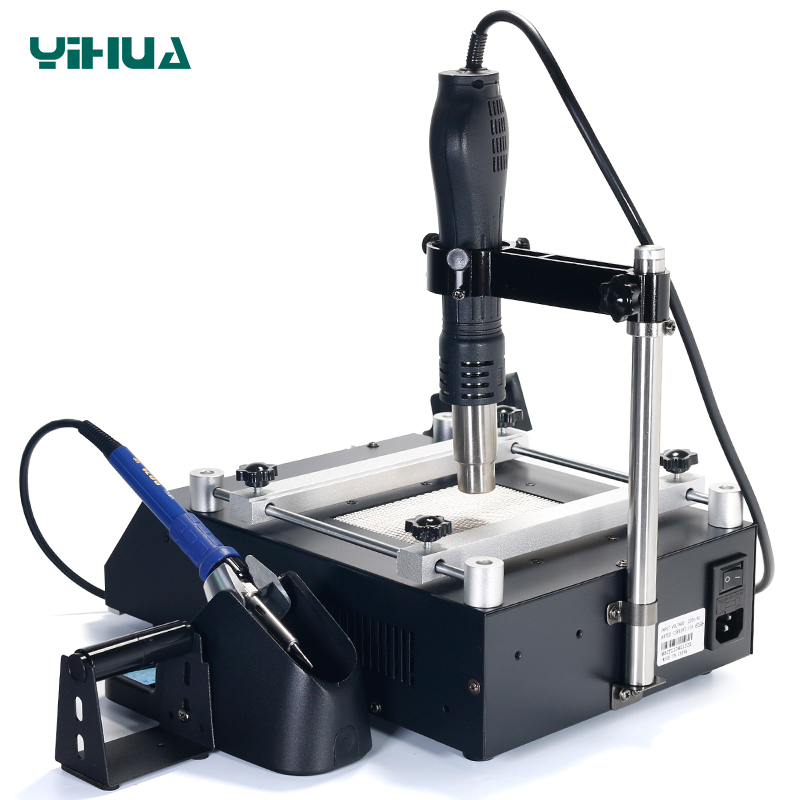

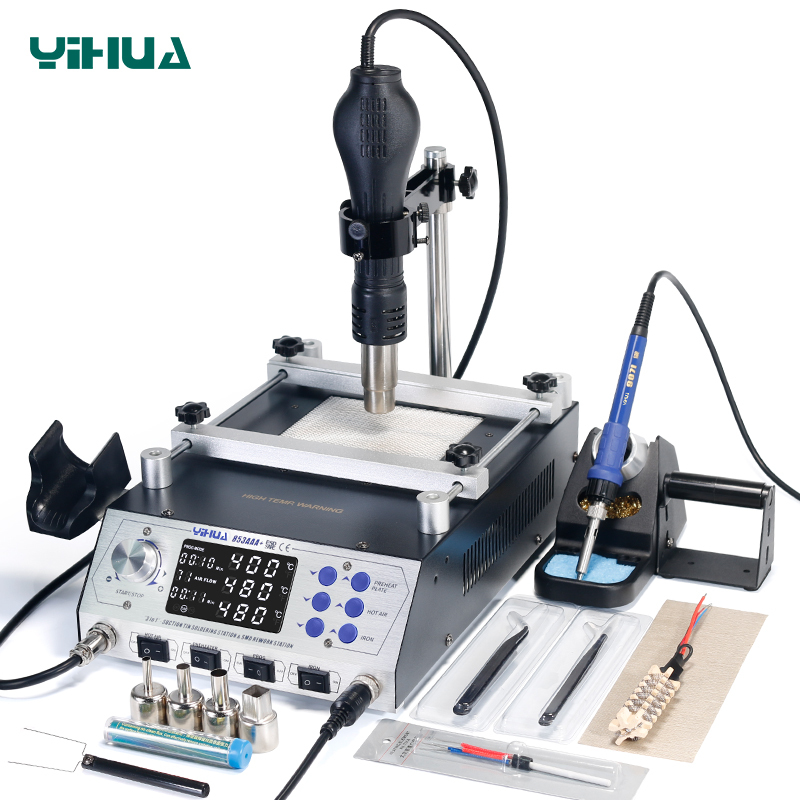

YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station

No.853AAA+
This rework station features a PID programmable temperature control system and real-time temperature tracking for each component, as well as an automatic temperature correction with a rapid compensation speed and minimum tolerance. MOQ : >50pcs Qty :4PCS/CTN
  • YIHUA 853AA/853AAA/853AAA+/853AAA-I basic version /853AAA-I upgrade version digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
  • YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
  • YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
  • YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
  • YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
  • YIHUA 853AAA+ digital SMD soldering desoldering hot air gun preheat BGA rework soldering station
SPECIFICATION

Feature

1.Adopts PID programmable temperature control technology with an implantable highest-precision PID program for high-speed tracking and detection of actual soldering iron temperature with real-time temperature correction.Miraculous temperature compensation speeds allow for  minimal temperature error for temperature stability and compensation speeds.

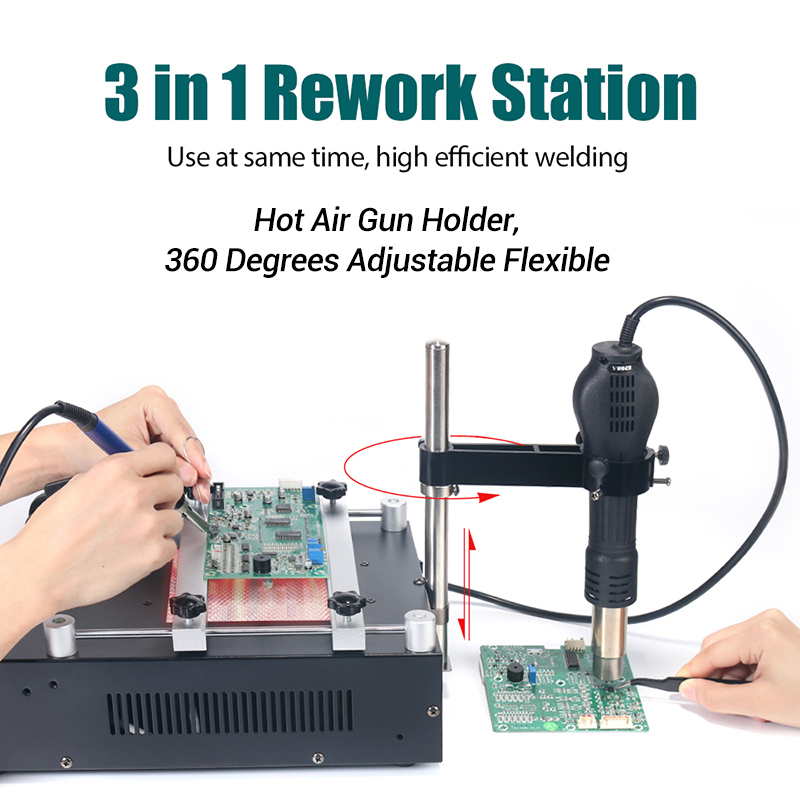

2.Featuring hot air gun rework station ,preheating station ,and high power soldering station functions.

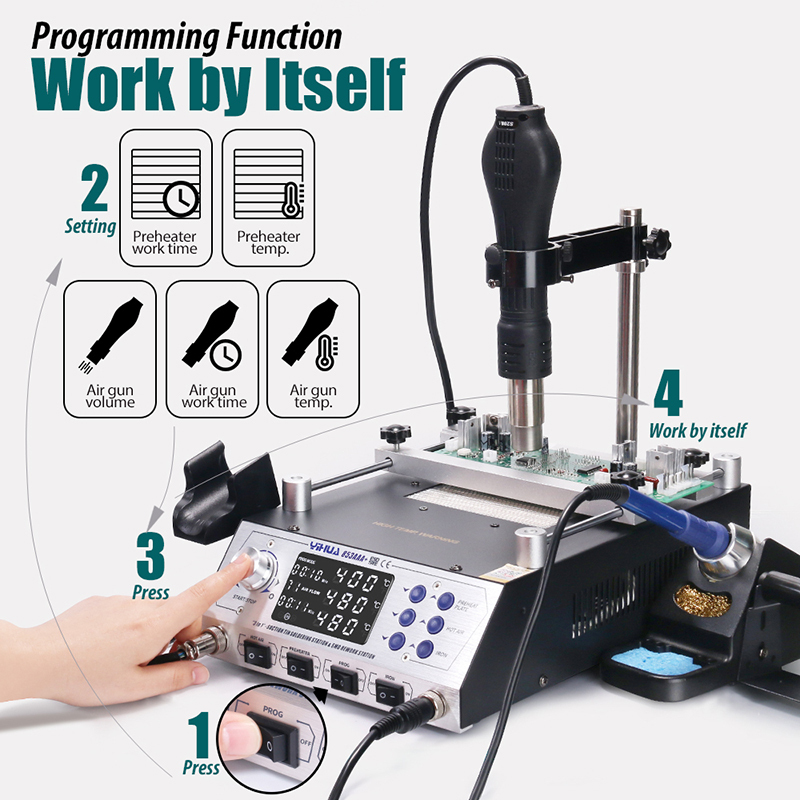

3.The hot air gun and preheating station soldering equipment have programmable functions.For the preheating station ,operating time and operating temperature can be set as parameters ,while for the hot air gun ,operating time ,operating temperature and operating air flow can be set as parameters.

4. Featuring Celsius / Fahrenheit temperature display function

Meet different market needs to design the temperature display mode, the temperature display function can be set to display either Celsius or Fahrenheit ,depending on local practices.

5.Features +-80℃ temperature compensation function.Temperature and display errors caused by environmental effects or replacement of parts including heating core and soldering iron tips can be corrected by using this function.

6.There are three sections of storage function,it can store different parameters ,easy to choose and easy to operate.

7.The product has an operating time function ,enabling users to check the product's operating time.

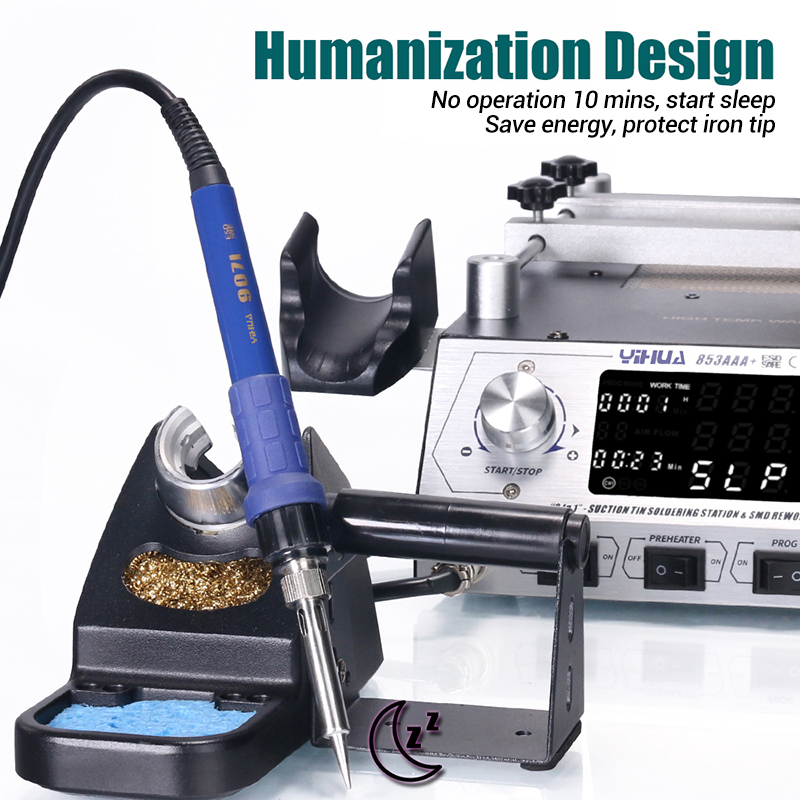

8.The soldering iron has a ten-minute fixed sleeping function .If the soldeirng iron is not in use and has been in a stationary state for ten minutes ,the temperature of the soldering iron will be automatically cooled to 200℃ and the soldering iron shall enter sleep mode ,preventing the oxidization of the soldering iron tip,both extending the lifespan of the soldering iron tip and saving energy.

9.The air gun has no wind protection function ,if use a heat gun is not normal in the process of stop the wind ,the heating wire to stop heating ,and the prevention of the no wind burning handle, so as to greatly improve the safety performance of the product.


Model  853AAA+
Rated voltage 220-240V/AC 50HZ
Rated power  1200W
Control unit dimensions L320*W220*/H270mm±5MM
Operating ambient temperature 0-40℃/32-104℉
Preheat station
Temperature range 50-400℃/122-752℉
Display LED Nixie tube
Heating suface area  120*120mm
Hot air rework station
Air delivery Brushless blower with smooth air delivery
Air volume ≤120L/MIN
Temperature range 100-480℃/212-896℉
Display LED Nixie tube
Soldering station
Temperature range 200-480℃/392-896℉
Display LED Nixie tube
Tip to ground resistance <2Ohms

Application
This equipment is suitable fora various kind of soldering or de-soldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. It is ideal for other purposes, including thermo shrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc. It is especially ideal for mobile phone's cable.
