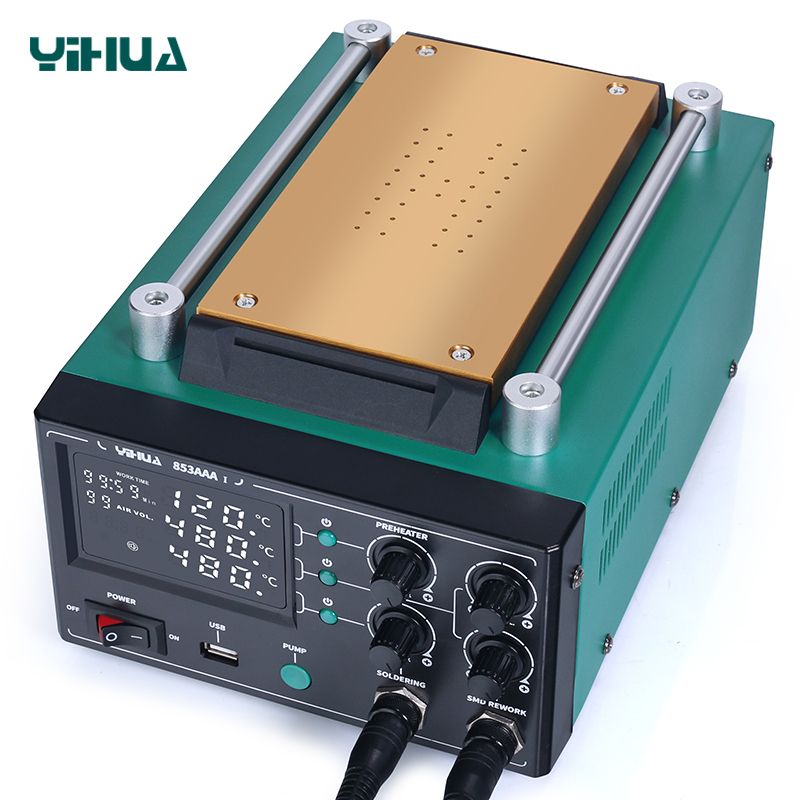

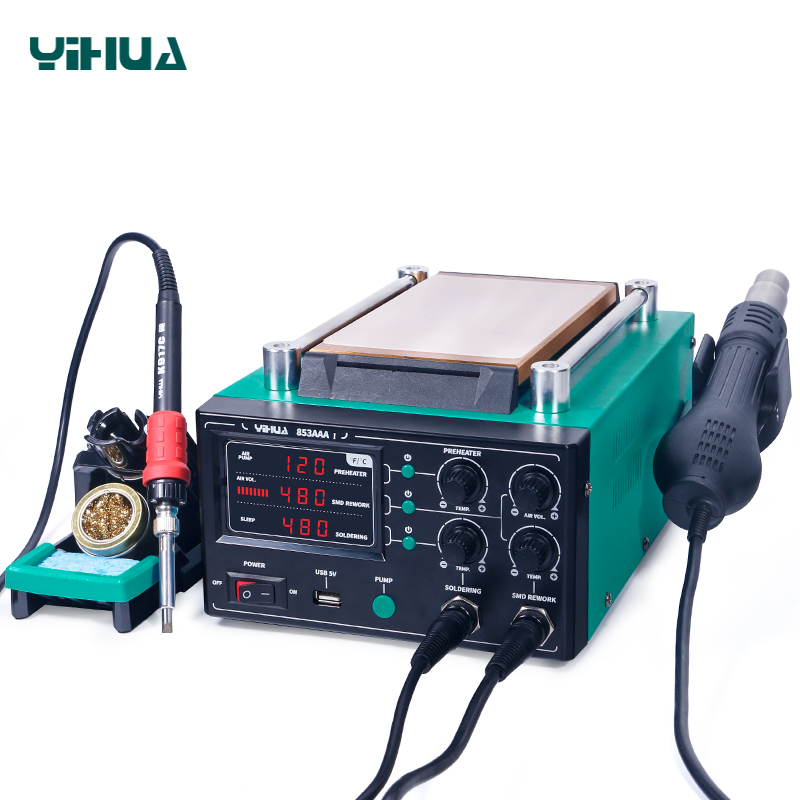

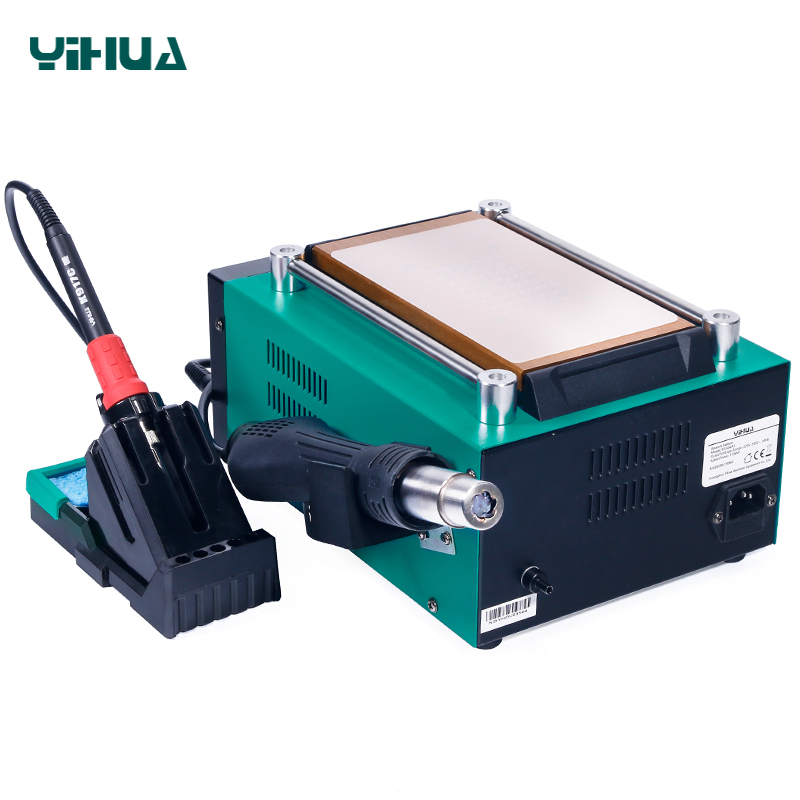

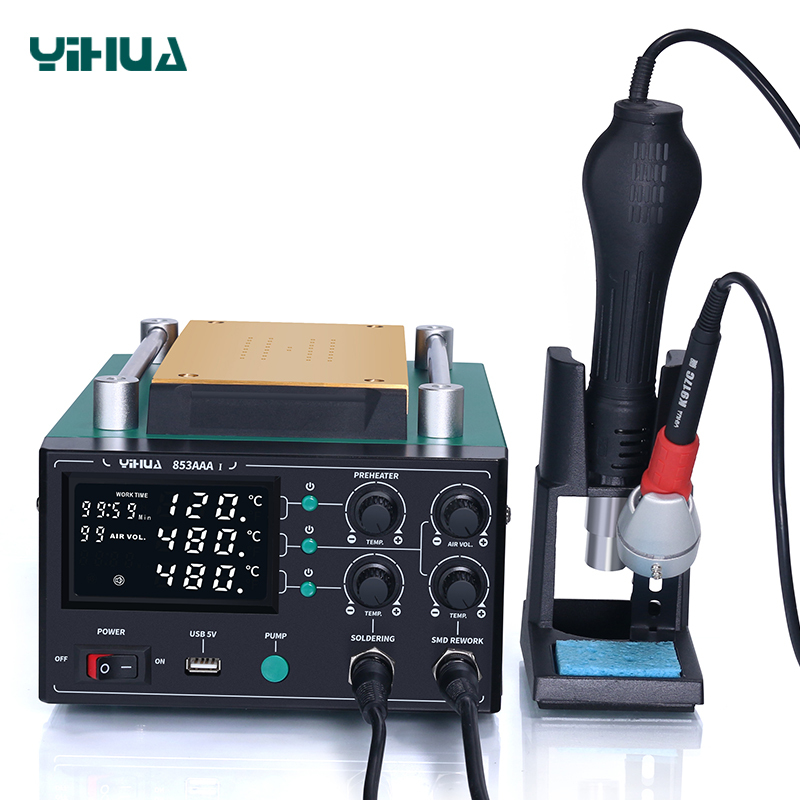

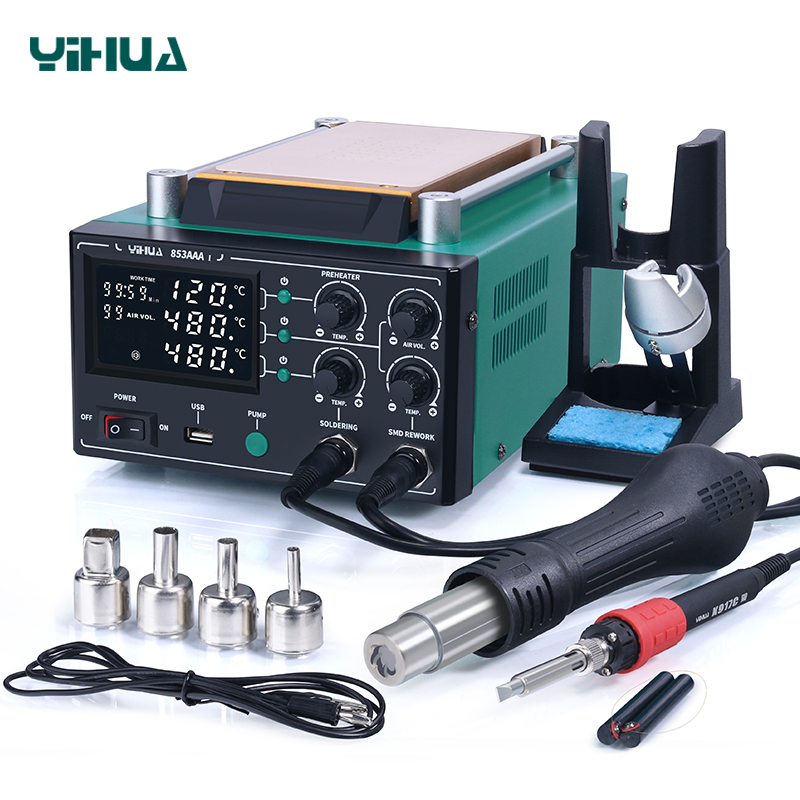

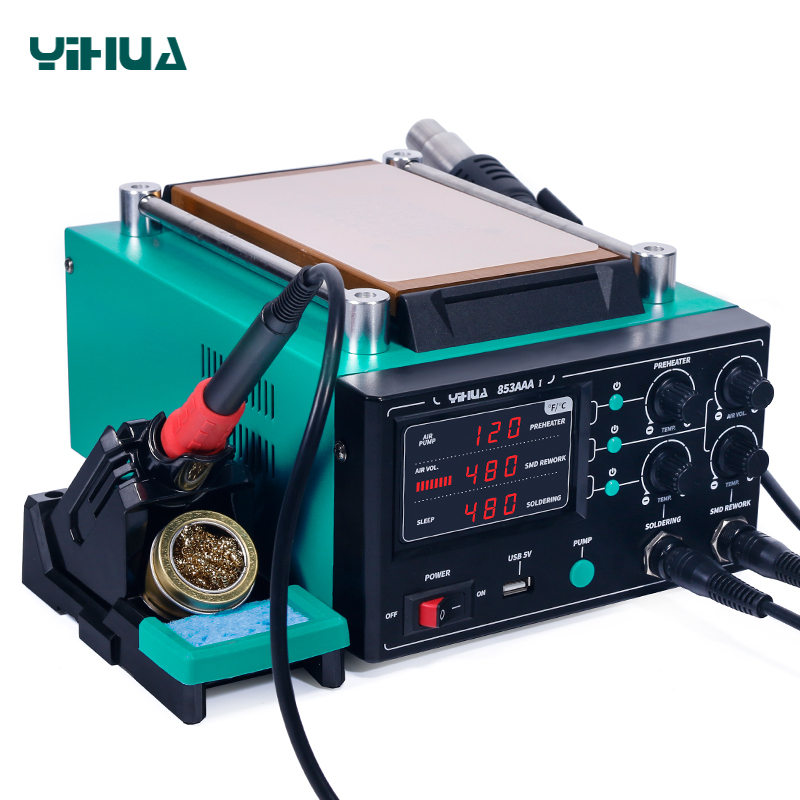

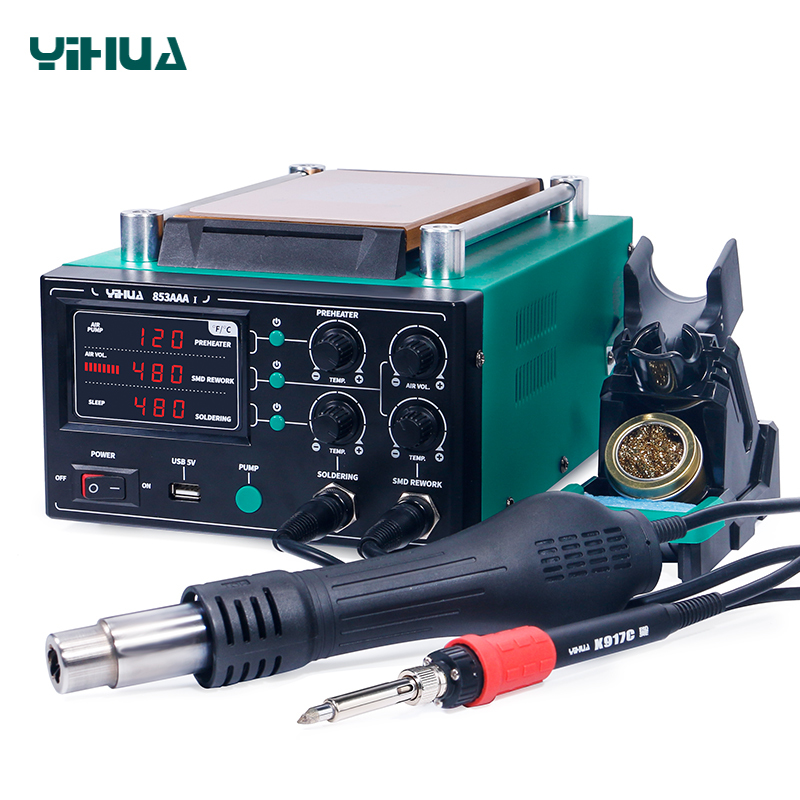

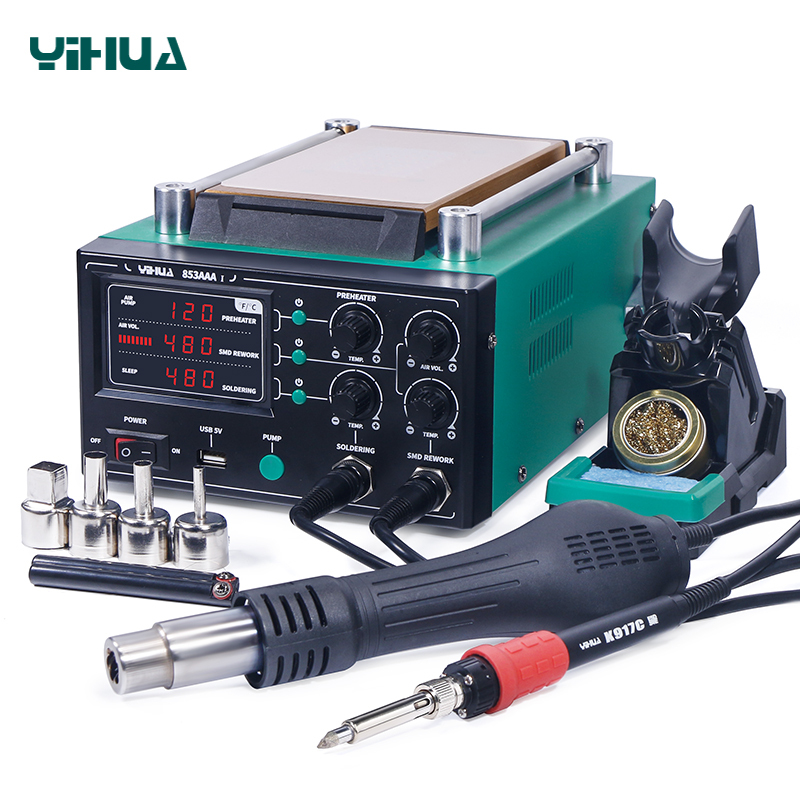

YIHUA 853AAA-I basic version /853AAA-I upgrade version digital SMD soldering desoldering hot air gun preheat BGA rework soldering station

No.853AAA-I basic version /853AAA-I upgrade version

This rework station features a PID programmable temperature control system and real-time temperature tracking for each component, as well as an automatic temperature correction with a rapid compensation speed and minimum tolerance. MOQ : ＞50pcs Qty: 3PCS/CTN

SPECIFICATION

1.Using microcomputer processor PID programmable temperature control technology.
2.Air Gun heater use ceramic heater. Heating elements firmly wrapped around the model ceramic, rapid and uniform heating. Use the upgraded version fan, the airflow larger than the ordinary fan, spiral out of the wind, long life.
3.Soldering iron part using Imported heater. Heating up rapidly, temperature stability, long service life; antistatic design to prevent electrostatic damag to delicate SMD components.
4.The machine has a self-test function. Full intelligent over-temperature, short-circuit, open circuit, overload and fault display and protection functions.
5.Temperature correction function. Adapt to the environmental impact, or replace the heating elements, soldering iron tips etc. spare parts caused by temperature deviation,can use this function calibration temperature. The correction temperaturerange is -50 °C ~ +50 °C.
6.Celsius / Fahrenheit temperature display function. Meet different market needs to design the temperature display mode, you can choose under customary interest.
7.Hot air gun part have add to auto./manual function.
8.Soldering iron sleep standby function, to save energy and protect heating core and soldering iron tips, and also prolong their service life, more safe.

Model	853AAA-I basic	853AAA-I upgrade
Rated voltage	220-240V/AC 50HZ
Rated power	1180W
Control unit dimensions	L275W195/H130mm±5MM
Operating ambient temperature	0-40℃/32-104℉
Screen separator
Temperature range	50-120℃/122-248℉	50-200℃/122-392℉
Display	Nixie LED
Heating suface area	200*110mm±5mm
Hot air rework station
Air delivery	Brushless blower with smooth air delivery
Air volume	≤120L/MIN
Temperature range	100-480℃/212-896℉
Display	Nixie LED
Soldering station
Temperature range	200-480℃/392-896℉
Display	Nixie LED
Tip to ground resistance	＜2Ohms

Application
This equipment is suitable fora various kind of soldering or de-soldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. It is ideal for other purposes, including thermo shrinking, paint drying, adhesive removal, thawing, warming, plastic welding, etc. It is especially ideal for mobile phone's cable.
