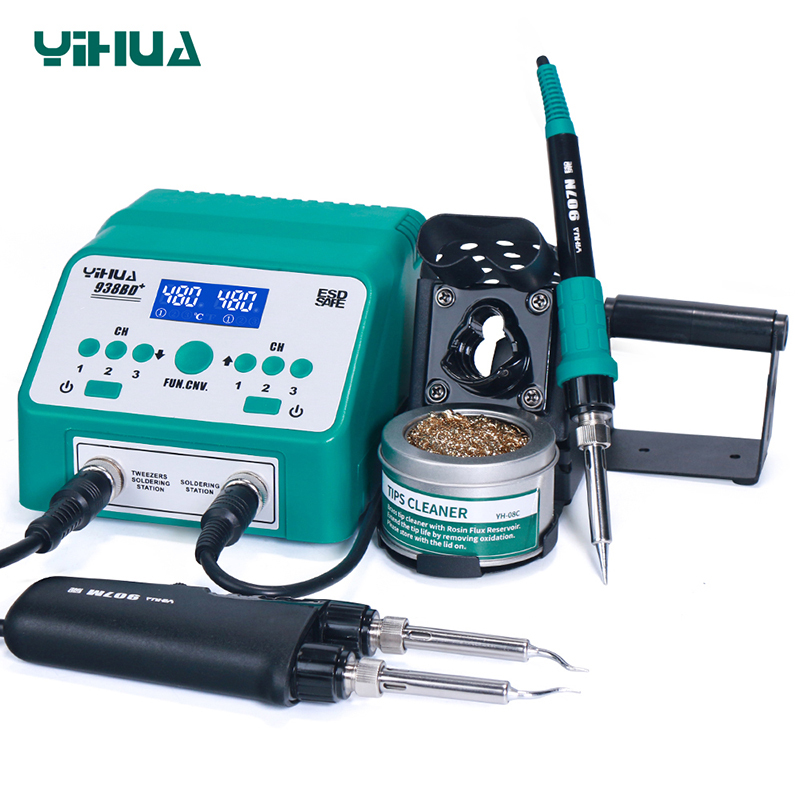

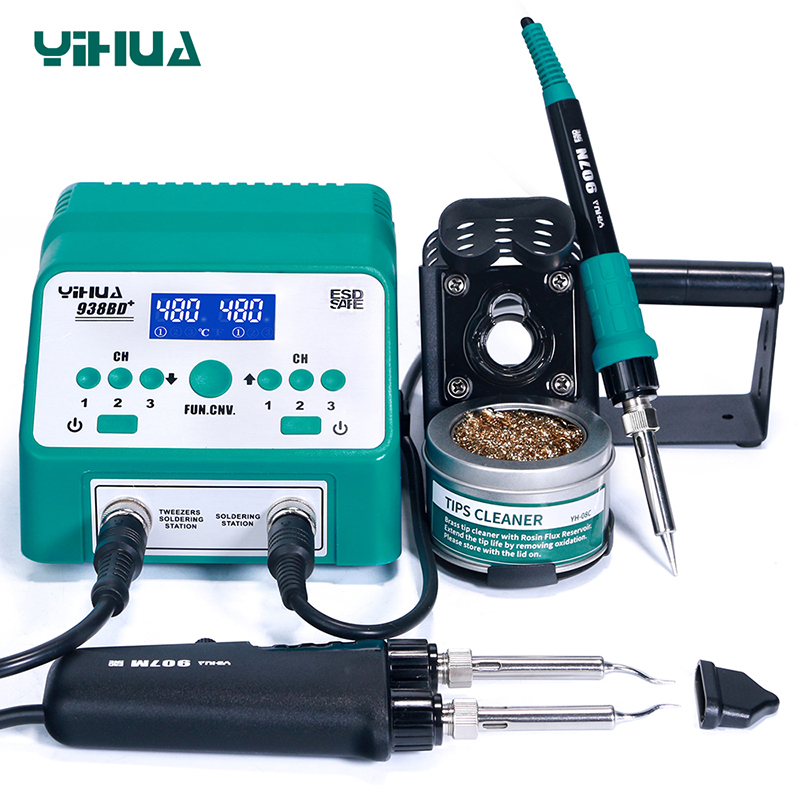

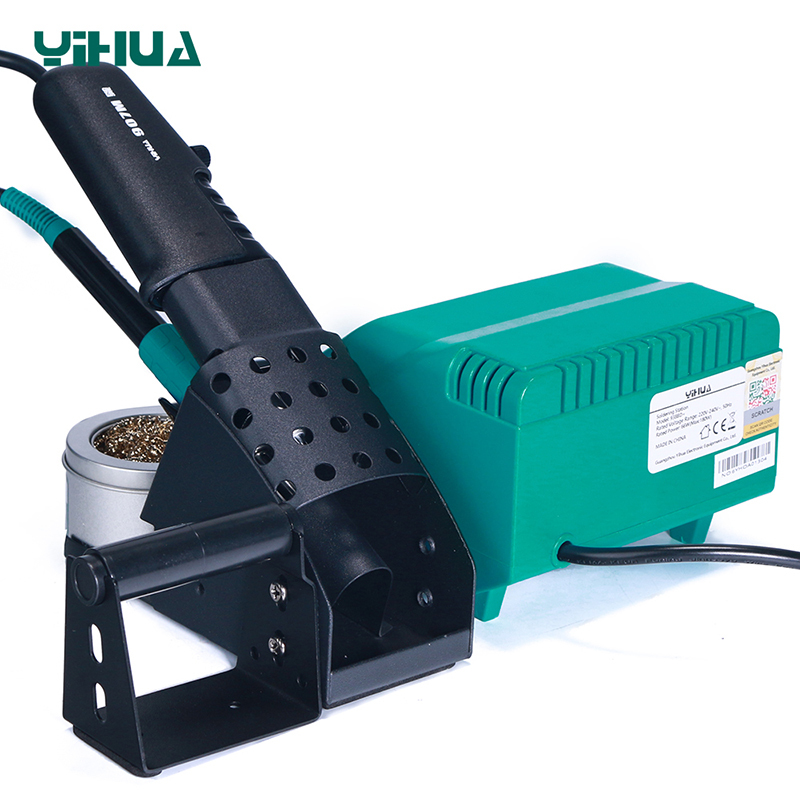

YIHUA 938BD+ Upgrade Version 2 in 1 large power SMD Soldering Iron Hot Tweezer soldering station

No.938BD+ Upgrade Version
Parallel electric tweezers design, very convenient for small electronic components, chip, chip removal and installation of welded components. When you need to remove the parallel electric tweezers can be used directly on the welding points across the resistor components for heating. QTY :6PCS/CTN MOQ :60PCS
  • YIHUA 938BD+ Upgrade Version 2 in 1 large power SMD Soldering Iron Hot Tweezer soldering station
  • YIHUA 938BD+ Upgrade Version 2 in 1 large power SMD Soldering Iron Hot Tweezer soldering station
  • YIHUA 938BD+ Upgrade Version 2 in 1 large power SMD Soldering Iron Hot Tweezer soldering station
SPECIFICATION
Features
Large-screen LCD display clearly shows measured values.

Adopt SAMSUNG microcomputer control, warming-up quickly.
High quality and good resistance for long service life.
This soldering equipment is ESD-protected.
Soldering iron handle using silicone material.
Front panel adopts alloy material with elegant appearance.
Case box is small, take up less place on work table.
Longer soldering iron handle line, with a length of 1.5 meter.
YIHUA938BD+ series tweezers soldering iron parallel desoldering IC, make it more easy for soldering and desoldering work. YIHUA938BD+ is tweezers soldering iron handle and common heater work together. YIHUA938BD+ upgrade version is tweezers soldering iron handle and import heater work together.
Unique handle model and soldering iron holder humanity design.
Parallel electric tweezers design, very convenient for small electronic components, chip, chip removal and installation of welded components. When you need to remove the parallel electric tweezers can be used directly on the welding points across the resistor components for heating.

Main function

1.Three memory sections:CH1/CH2/CH3, each storage segment can store three temperature.
2.Sleep function, Automatic shutdown function, Celsius / Fahrenheit function
a) Sleep function: Soldering iron automatic detection of their work status are not in use in a quiescent state, arriving to set the sleep time, the temperature of the iron automatically lower the temperature to 200°C enter into sleep state, can effectively prevent the oxidation of iron head and prolong the iron tip service life, energy saving and environmental protection. The sleep time can be set range 0 to 99 minutes in 1 minute steps, users can be set based on usage, if you do not need a soldering iron sleep ,the sleep time is set to 0.
b) Automatic shutdown function: After soldering iron enter into sleep state, start the timer program, set the shutdown time did not wake up from sleep, automatic shutdown, energy saving and environmental protection. Auto power off time setting range 0 to 99 minutes in 1 minute steps.
c) Celsius / Fahrenheit temperature display function: Designed to meet the market needs of the different regions of the temperature display mode.
3.Temperature correction function:
Adapted to the environmental impact or replacement heater, iron top parts caused by iron temperature and display temperature deviation can be corrected by this function, the calibration temperature range: -50℃~ + 50 ℃

Item

938BD+Standard/938BD+ Upgraded

Power

135W(938BD+Standard) 180W(938BD+ Upgraded)

Soldering iron heater

Common heater(938BD+Standard) Imported heater(938BD+ Upgraded)

Temperature Range

100~480℃/212~896℉

Display

LCD

Temperature Stability

±2℃ (Static)

Rated Voltage

AC24V±10%50Hz

Tips to Ground Impedance

<2Ω

Tips Voltage to Ground

<2mV

dimension

L150xW136xH100mm±5mm

Machine Weight

about3.0kg

Working Temperature

0~40℃/32~104℉

Storage Temperature

-20~80℃/-4~176℉

Storage humidity

35~45%

Packing specification

6 Table/piece
