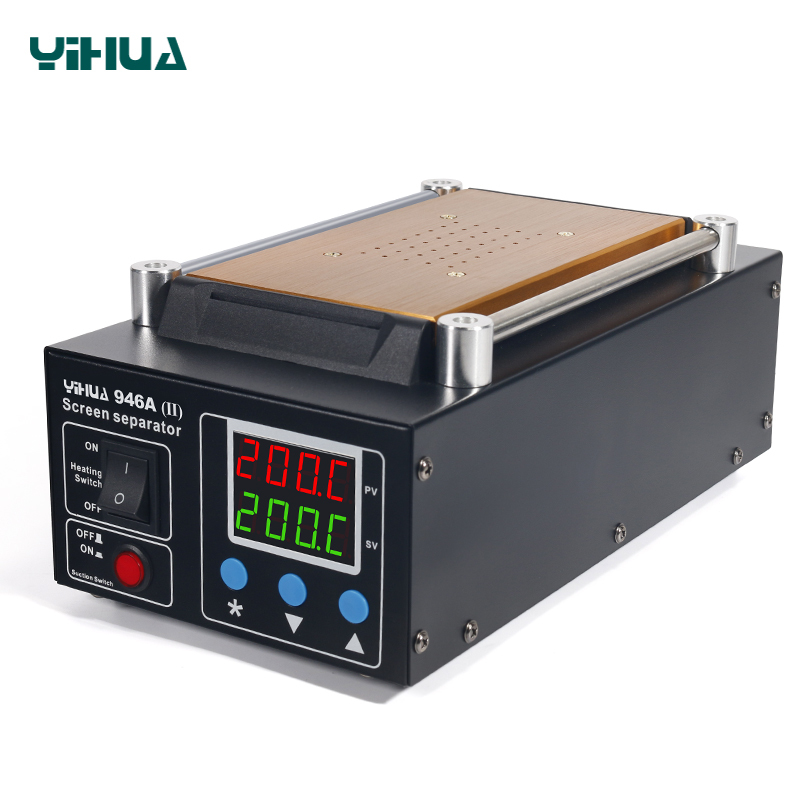

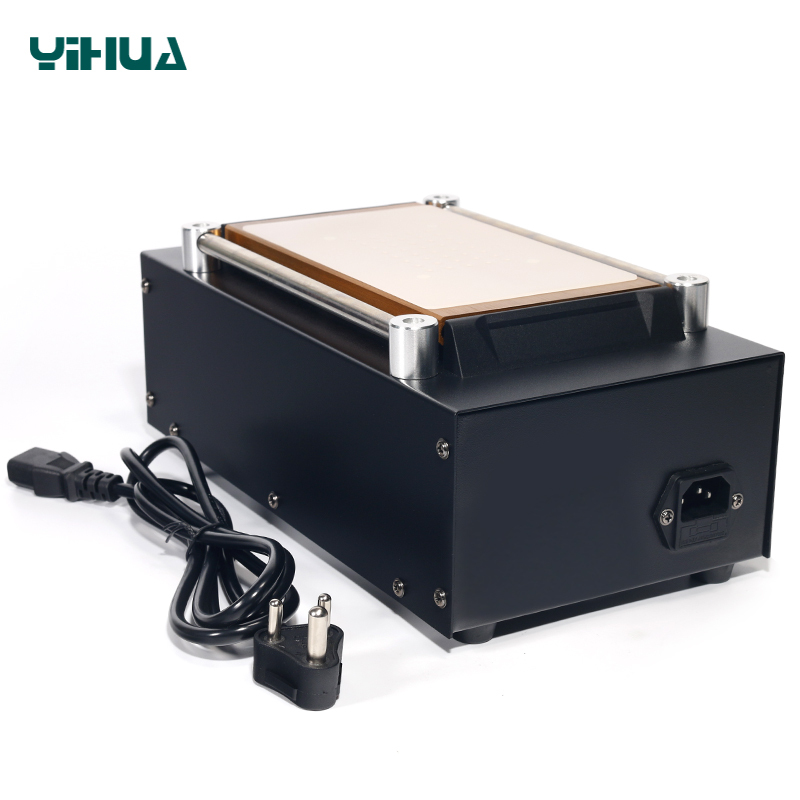

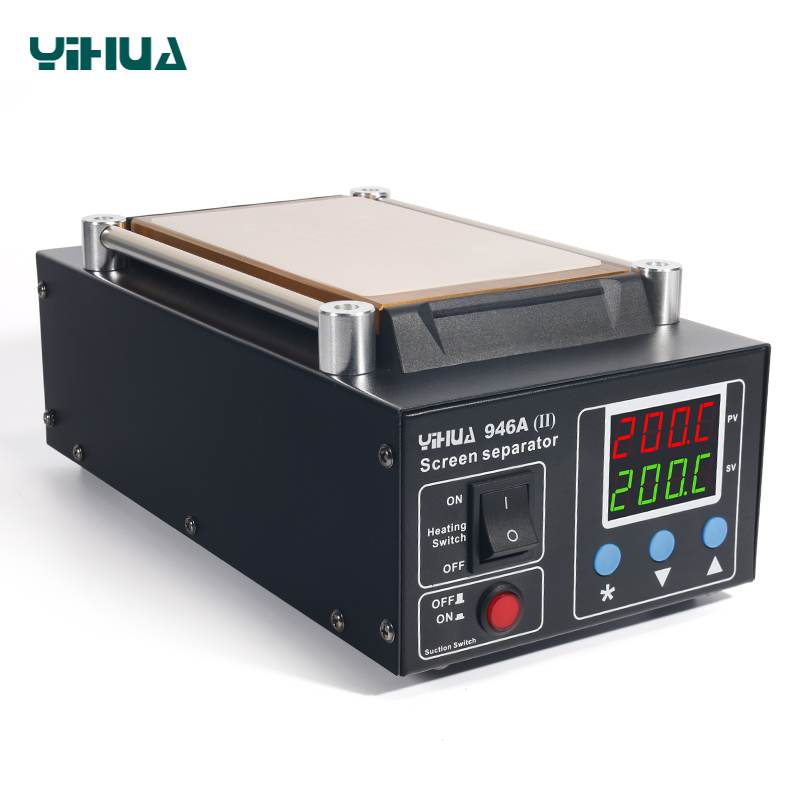

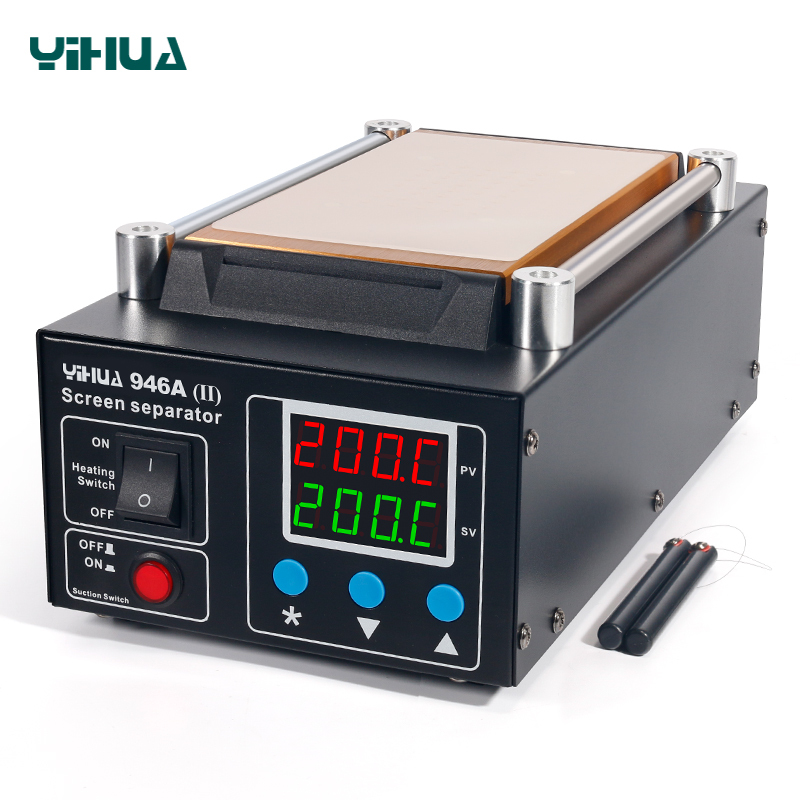

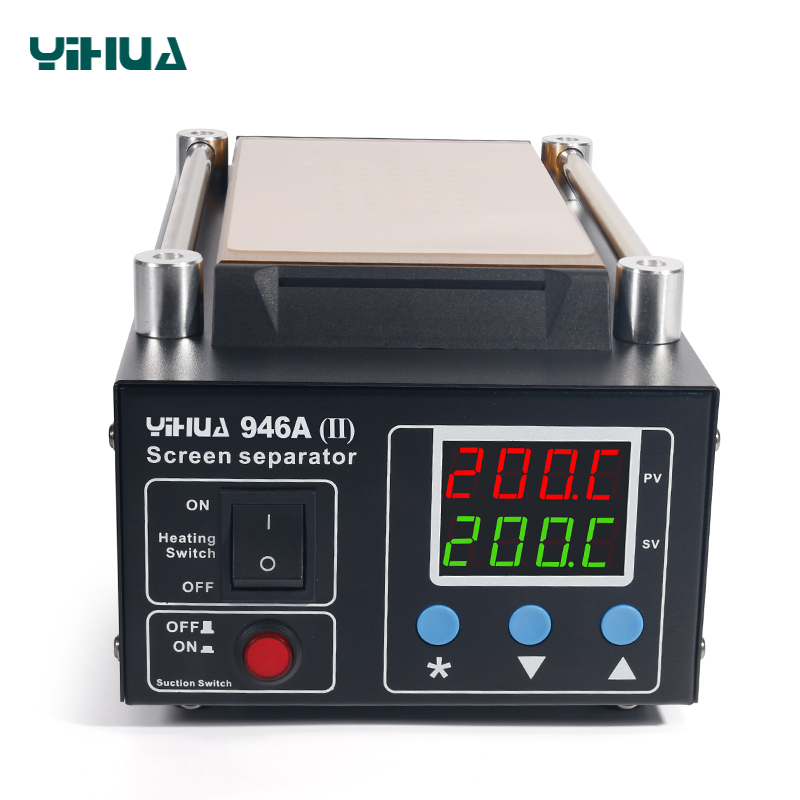

YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station

No.946A-II
With PID programmable temperature control technology and the highest precision PID input program, temperature is both adjustable and stable while deviations are minimized. The heated aluminum is smooth and flat, ensuring a uniform surface temperature.
  • YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station
  • YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station
  • YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station
  • YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station
  • YIHUA 946A-II lcd & touch screen glass digitizer separate separating machine preheating station
SPECIFICATION

Product Features

1. Using the PID programmable temperature control technology and implantation of the most high-end precision PID program.
2. Heating plate is Smooth, Aluminum surface temperature uniformity.
3. Inside with Vacuum pump, strong suction and small noise, long life.
4. Functions
A. Celsius / Fahrenheit temperature display:To satisfy different market demand, you can work it with your choice.
B. The temperature correction feature:
Aluminum surface is large, when working temperature change, the machine temperature will be some change, we can correct the temperature use this function. Range: -50°C~50°C
5. It adopt SMT double sided circuit board, this improves stability and safety a lot. Can adapt to harsh environments.

Power

430W

Temperature range

50°C~200°C

Display type

LED

Temperature stability

±2°C (Static)

Vacuum pump power

12W

Vacuum pressure

0.12MPa

Aluminum to ground resistance

<2Ω

Aluminum size

L 200MM x W 110MM

Machine size

L300 x W160 x H90MM ±3MM

Working temperature

0°C~40°C/32°F~104°F


Package details as below:

QTY:1PCS /INNER BOX

Inner box size:38*21*17cm

QTY:6PCS/outer carton

Outer carton size:44.5*40.2*55.5cm

Goods wegith:4KG/PCS

Outer carton G.W.:24.5KG/CTN
