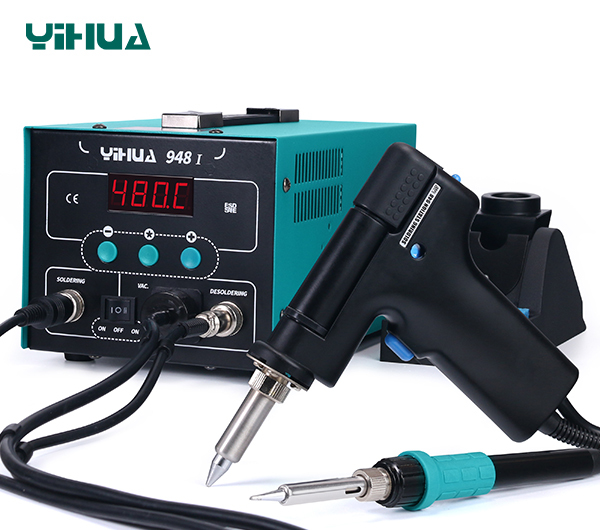

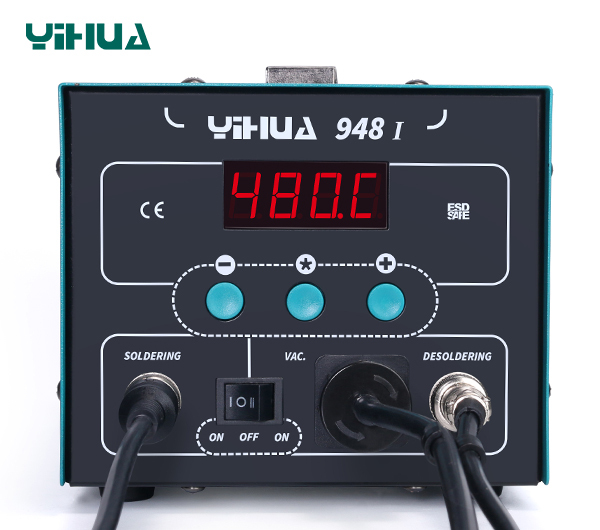

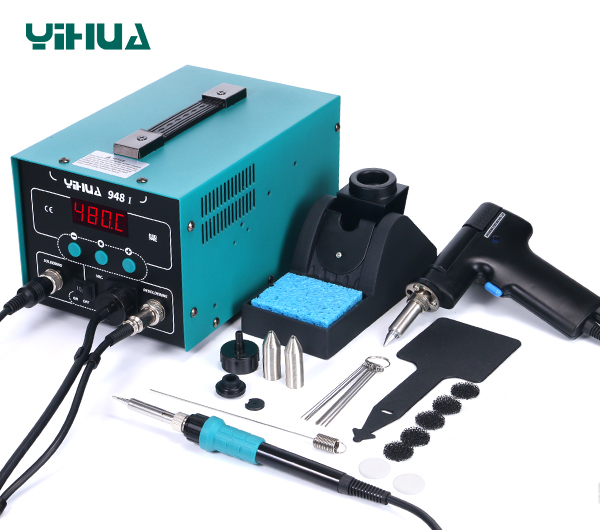

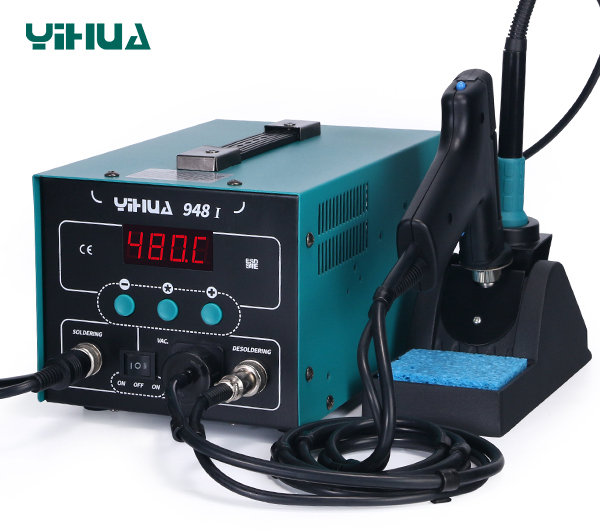

YIHUA 948-I 2 in 1 Multi Function Adjustable Soldering Iron Soldering Station Desoldering soldering station

No.948-I
  • One Unit, Two Tools - A Good Combination of Desoldering Station(80-watt high power) and Soldering Station (60 watts). And it's compact with user-centric design features - Sleep Function; Digital Temperature Correction; Celsius/Fahrenheit Display.
  • YIHUA 948-I 2 in 1 Multi Function Adjustable Soldering Iron Soldering Station Desoldering soldering station
  • YIHUA 948-I 2 in 1 Multi Function Adjustable Soldering Iron Soldering Station Desoldering soldering station
  • YIHUA 948-I 2 in 1 Multi Function Adjustable Soldering Iron Soldering Station Desoldering soldering station
  • YIHUA 948-I 2 in 1 Multi Function Adjustable Soldering Iron Soldering Station Desoldering soldering station
SPECIFICATION

Feature

1. Adopts PID program temperature control technology with an implantable high-precision PID program for high-speed tracking and detection of actual soldering station temperatures with real-time temperature correction. Temperature stability, little temperature error.
2.With tin-suction and soldering iron function. It can connect a suction pen to pick up small chips, too.
3. Adopts an isolation transformer for power supply to heating elements , low voltage power supply which safety and reliability.
4.Built-in vacuum with strong suction does away with external vacuum systems, easy to take away.
5.Soldering/desoldering iron stand with the integration of design, installation on the side of the machine, save sapce and stable.
6. This device has the following user-friendly design features

A. Soldering iron sleep standby function, to protect and prolong the heating elements' service life.
B. Temperature correction function.
Suitable for temperature deviations between actual temperatures and displayed temperatures due to environmental conditions or the replacement of heating cores, iron tips or other parts which can be corrected with this feature.
C. Celsius/Fahrenheit display temperature function
To satisfy market demand in different regions.
D.Buzzer on/off function.
Users can set base on usage to select turn ON the buzzer and turn off the buzzer.7. With a unique tin suction nozzle and heating pipe design, solder inhales through filters in a molten state.

Model

948-I

Input voltage

AC 110~127V 60Hz/220~240V 50Hz

Rate power

90W

Display type

LED digital

Soldering iron temperature range

200℃~480℃/392℉~896℉

Desoldering iron temperature range

350℃~480℃/662℉~896℉

Vacuum suction

0.05MPa

Tip of ground resistance

<2Ω

Operating temperature

0-40oC/32°F-104°F

storage temperature

-20oC-80oC/-4°F-176°F

Storage humidity

35-45%
