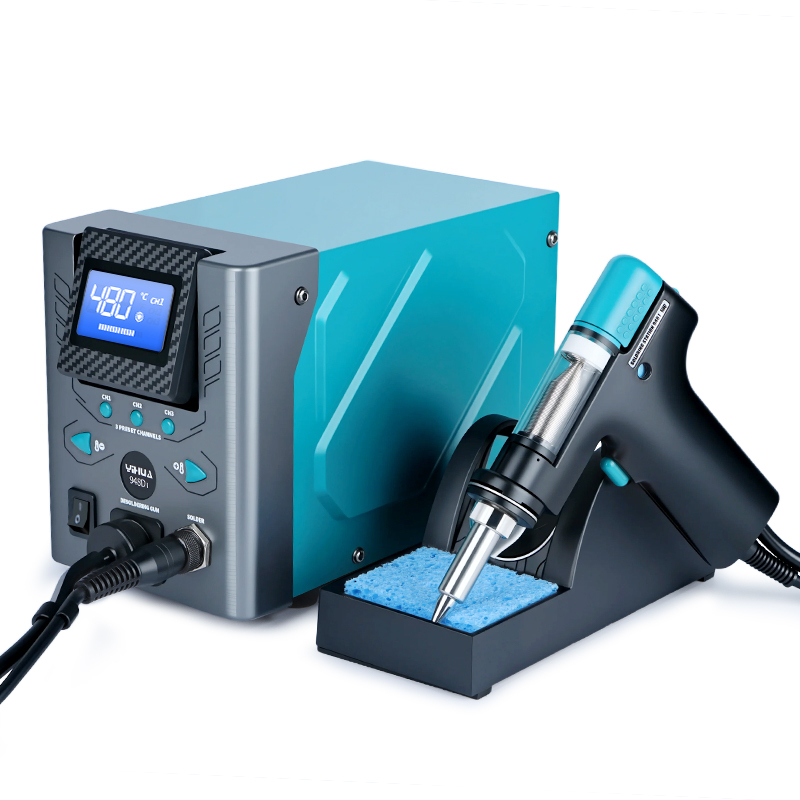

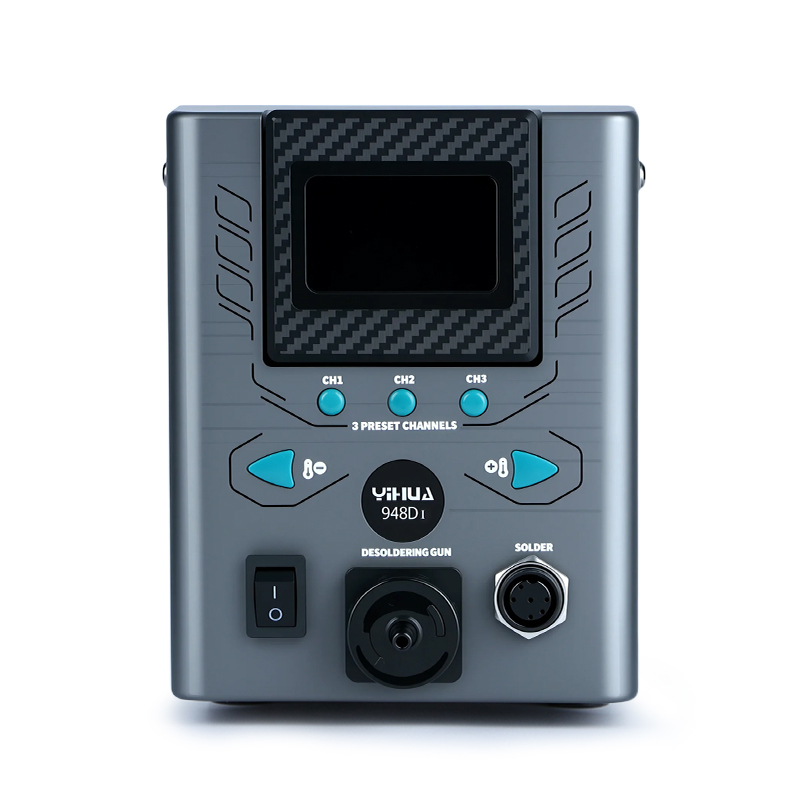

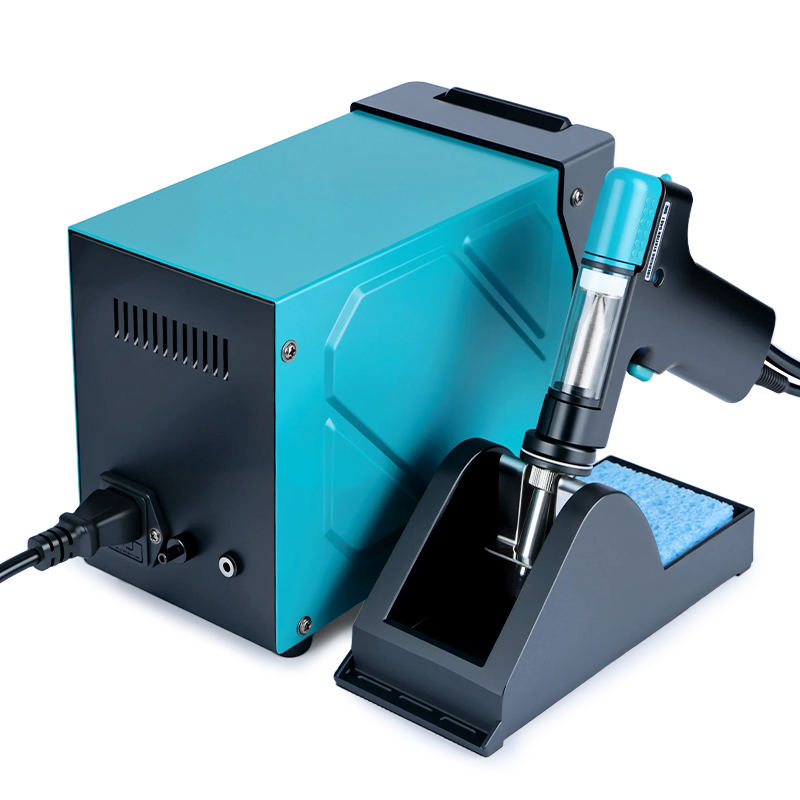

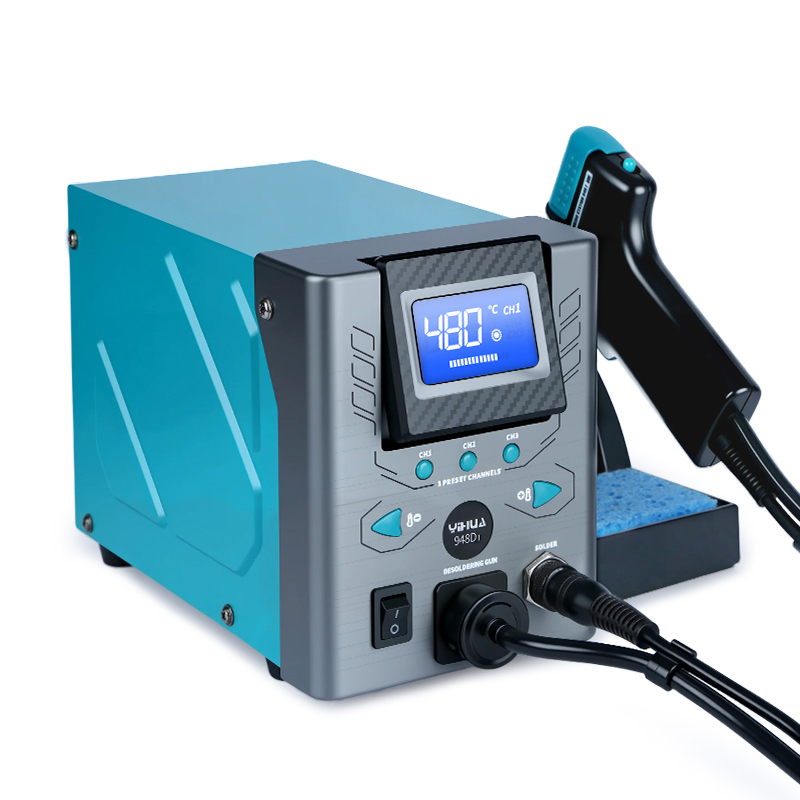

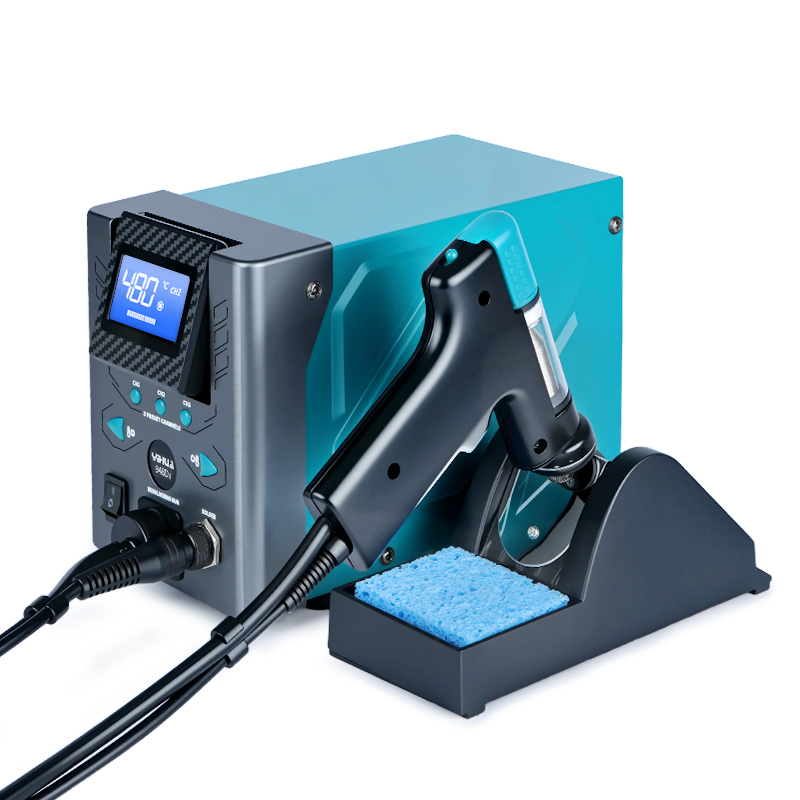

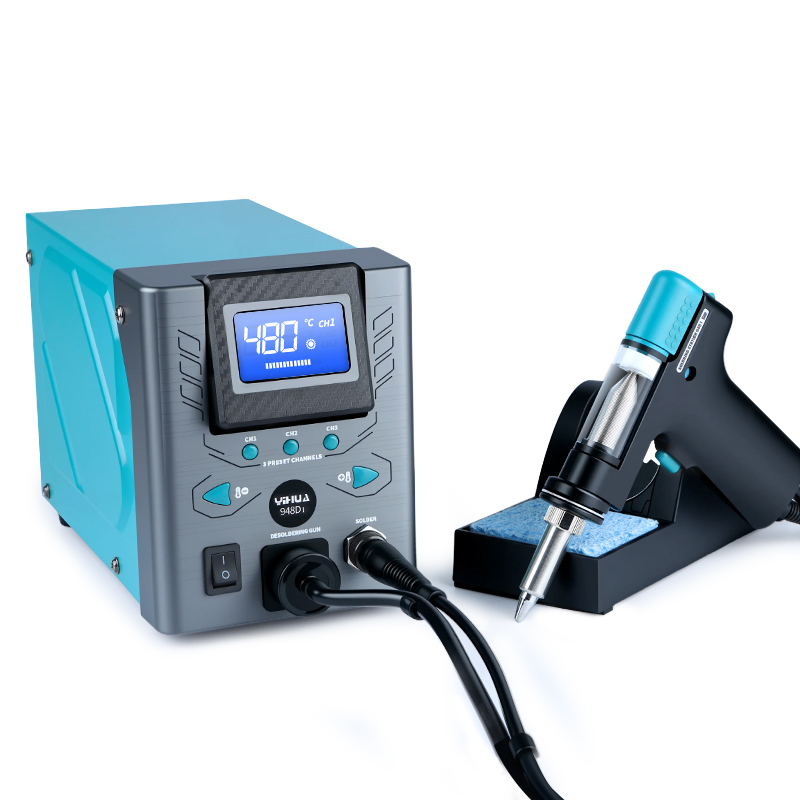

YIHUA 948D-I 110W Digital Desoldering Rework Station Vacuum Pump Solder Station

Key Features

• [Built-in Vacuum Pump] Strong suction without external vacuum system — efficient and portable.
• [PID Temp Control] High-precision PID program tracks actual temperature in real time, providing stable performance with minimal deviation.
• [Sleep Mode] Iron enters sleep after a preset idle time (0–99 min) to extend heater and tip lifespan; wakes with a simple shake.
• [°C/°F Switch] Supports both Celsius and Fahrenheit for international use.
• [Digital Temperature Calibration] Calibrate temperature via buttons — no disassembly needed, quick and convenient.
• [Auto Shut-Off] After approx. 30 minutes of inactivity, the station powers off for safety and energy saving.
• [Audible Alert] Buzzer can notify when actions complete or modes change.

Specifications

• Model: 948D-I
• Rated Voltage: 110–127V~, 60Hz
• Rated Power: 110W
• Dimensions: L8.66″ x W4.72″ x H6.14″ ±0.2inches
• Operating Temperature: 32°F – 104°F (0°C – 40°C)
• Desoldering Temp Range: 716°F – 896°F (380°C – 480°C)
• Display Type: LCD
• Vacuum Pressure: 0.05MPa
• Tip to Ground Resistance: < 2Ω

• Package Includes

  • 1 × 948D-I EVO 110W Desoldering Station
  • 1 × Desoldering Gun Nozzle (1.2mm)
  • 2 × Ceramic Filters
  • 5 × Activated Carbon Filters
  • 2 × Filter Springs
  • 1 × Replacement Filter Tube
  • 1 × Cleaning Pen Set
  • 1 × Desoldering Gun Holder
  • 1 × Cleaning Sponge
  • 1 × Heat-Resistant Silicone Mat
